Code Signing as an Individual Developer

I've created several C++ projects in my free time that compile down to Windows .EXEs and .DLLs. These binaries have always been unsigned which hasn't been too much of an issue. However, occasionally antivirus software decides to eat the files after someone downloads them.

That's weird, since I'm very certain my software doesn't contain viruses:

• I definitely didn't add any myself.
• There's nothing weird running on my computer. I don't download sketchy, pirated software.
• Most of my programs have few dependencies, and I check projects before integrating them into my code.

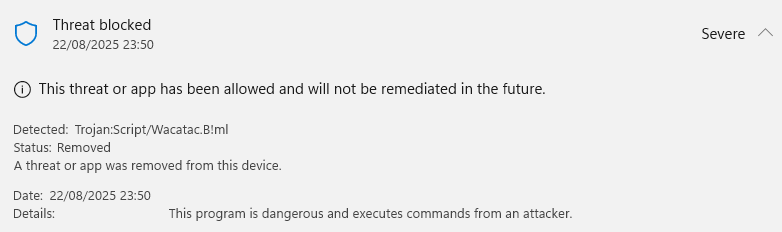

• Most AVs don't think the code is a virus. It's just the occasional AV that "detects" something bad.

Why Sign Your Code?

When a program is signed with a certificate, it proofs that it was published by someone with control over the private key. Normally the entity described in the certificate is the same one that controls the key; otherwise, you have what's called an "incident". :-)

Assuming no key compromises, this makes it easy for people to verify where the software came from and that it hasn't stealthily been changed by someone (since that would invalidate the signature).

According to the internet™, whether program is signed may be used by AVs as an indicator of the file's trustworthiness. Anecdotally, this appears to be true. The programs I tested were only marked by a couple AVs as malicious, but adding a signature to the file made some (and sometimes all) findings go away. Even using a self-signed certificate seems to help a bit, which is silly.

Windows displays a scary popup (SmartScreen) when you run a program downloaded from the internet. Windows stops showing this screen once the program has built up enough reputation. A certificate lets you carry this reputation over to new versions of the same program or to entirely different programs.

Purchasing a Certificate

Because of the potential benefit with antivirus scans and a general interest in learning more about digital certificates, I decided to look for a place to buy a code signing certificate from.

My criteria were:

• An IV (Individual Validated) certificate, no organisation or extended validation
• Reasonably priced
• No difficult/confusing restrictions
• Good support

The following options were seriously considered:

HARICA

• Affordable.
• You receive the key on a hardware token.
  • This means there aren't any signing restrictions, e.g., must be open source or only X signatures per month.
  • But it is more difficult to use in CI environments.
• I had a good experience with their support team when I asked a couple questions.

Despite the challenges of using a hardware token in CI environments, this is the CA I picked.

The certificate ended up costing €68.2 and the hardware token was €49.6 for a grand total of €117.8.

The hardware token is reusable; it contains four keys (two RSA + two EC) and HARICA allows each key to be used for 10 years. So, potentially, you can use the same token for forty years. That's assuming you want to use both key types and that the hardware token keeps up with developing PKI standards.

I would not expect the hardware token to last that long in practice. Still, the token will last many years and you get up to a 30% discount if you buy a certificate for multiple years in advance. Altogether, code signing is probably less expensive than many people think it is.

Validation Process

A certificate has to mean something. In the case of IV certificates, they should give you a reasonable assurance that the person listed in the certificate is a real person and the one that actually requested the certificate.

In other words, CAs need to guard against identity fabrication and impersonation before handing out a certificate.

I ended up providing HARICA the following information:

• Scans of my ID
• Photo of myself holding my ID
• Government document containing my address

Except for an annoying digital hiccup, things went smoothly and I received confirmation that the hardware token was on its way. Once it arrived, I sent the support team a validation code and they in turn sent back the token's PIN and PUK codes (which I've changed).

HARICA gave instructions for how to load the certificate onto the hardware token. The software they tell you to use runs on:

• Windows
• MacOS
• Linux
  • CentOS 8/9 (.rpm)
  • Ubuntu 20/22 (.deb)

For a brief moment, I considered extracting the .deb archive to try and run it on my Arch Linux machine or maybe inside a custom Flatpak application package. Eventually I came to my senses and decided to spare myself (and HARICA's support team) the inevitable headache.

A couple CLI commands later, I had an Ubuntu VM running via libvirt and installed the application there. After shutting down pcscd.service on the host machine, I was able to attach the hardware token to the VM and run the setup application.

The Certificate

Finally I have the hardware token set up, but what does the certificate actually look like?

Well, it's an X.509 certificate with 'Code Signing' set in the extended key usage extension. The issuer is 'Hellenic Academic and Research Institutions CA' also known as HARICA. The subject is me! it contains my country, province, city, and my full legal name.

If you get an IV certificate, you must be comfortable with this information being publicly accessible. The certificate is attached to every program you sign and it's easy for people to view.

Data:
    Version: 3 (0x2)
    Serial Number:
        21:59:8a:71:4b:14:fb:f6:c4:39:02:c7:20:fa:d4:cd
    Signature Algorithm: sha256WithRSAEncryption
    Issuer: C=GR, O=Hellenic Academic and Research Institutions CA, CN=HARICA Code Signing RSA 2
    Validity
        Not Before: Aug 13 12:21:10 2025 GMT
        Not After : Aug 13 12:21:10 2026 GMT
    Subject: C=NL, ST=Noord-Holland, L=Purmerend, SN=Döpping, GN=Dexter Castor, CN=Dexter Castor Döpping
    Subject Public Key Info:
        Public Key Algorithm: rsaEncryption
            Public-Key: (4096 bit)
            Modulus:
                00:9e:a5:f8:92:fa:49:4d:58:00:7d:1e:20:db:d7:
                ac:6b:1f:e1:45:fb:c3:82:fb:23:e4:e9:69:e5:b7:
                ad:07:93:f8:9c:d5:d4:60:d7:8d:53:e0:1f:47:04:
                e6:d7:e0:24:c6:e0:94:66:68:85:16:bd:a7:8b:6c:
                3d:01:0a:04:34:55:77:a0:42:89:ed:b4:72:a3:7c:
                b6:07:fc:f1:05:93:38:c4:0d:85:ad:90:a3:11:d9:
                f2:bc:be:a2:be:5f:c0:86:8a:6b:5c:68:fd:45:53:
                3b:14:ec:2a:75:56:7a:b6:ed:e9:a5:76:c0:ba:05:
                c1:df:e4:b6:77:11:38:41:ca:ed:26:c4:55:ef:ae:
                41:b2:05:d9:60:20:c6:ad:51:9c:28:8f:84:94:7d:
                38:c1:c0:79:66:a1:4d:ea:7f:0c:75:54:2f:59:36:
                4a:52:fe:89:9c:62:b2:66:a7:b2:0f:61:bc:12:78:
                01:c8:c6:ca:b4:b3:e4:20:a6:7f:ce:34:34:5c:1a:
                e2:c9:58:5c:2a:98:39:c1:bb:ae:e5:3d:d8:f6:02:
                4f:a1:c5:59:3c:b4:c6:ec:37:5f:9e:0c:16:59:3f:
                ed:ad:d2:b1:ca:34:ea:b5:9b:89:3d:ed:60:61:53:
                08:87:0f:62:c1:0e:f2:b5:ef:4c:f4:0a:e3:45:be:
                53:fe:21:33:6b:98:fa:de:0e:f7:77:b8:2b:d6:af:
                82:7b:b1:b0:b8:95:25:bf:6d:ab:f5:c4:5a:a4:cd:
                58:38:13:44:b2:1b:17:e2:e1:87:74:2b:93:b9:7a:
                2c:43:63:df:27:69:1d:1f:f3:08:b9:97:c9:60:dd:
                be:f3:5f:45:2c:4e:d7:8b:28:cd:a2:65:f2:7e:66:
                bb:d0:4a:cb:c2:05:d5:01:3d:ab:12:37:bf:e4:16:
                d0:52:46:8a:87:92:84:8b:bf:38:00:32:6f:ec:8b:
                40:52:93:d5:ca:87:13:58:2d:59:1c:9f:45:ba:ce:
                48:2d:c5:8f:01:d3:b3:8f:a0:92:30:3f:c7:53:73:
                61:e8:dc:bc:b4:9a:64:64:8d:3a:45:27:14:46:3a:
                45:4c:55:de:68:8b:ec:60:0e:ab:77:d4:7f:50:d5:
                68:ea:96:1b:ad:e9:62:98:92:61:28:57:22:55:fd:
                f1:9f:0b:f9:98:2a:5b:8e:0b:4a:2b:d8:da:19:eb:
                88:2f:5d:3c:9d:fd:ef:89:ea:d5:ed:0a:cd:20:0f:
                01:4f:10:87:7e:76:f5:0d:b9:c1:e1:51:09:b5:de:
                75:bd:c9:8f:b4:7f:62:d4:43:53:ae:da:ae:88:bd:
                40:e8:a5:45:7e:44:c7:35:b8:4d:d7:60:7f:41:a5:
                be:98:67
            Exponent: 65537 (0x10001)
    X509v3 extensions:
        X509v3 Basic Constraints:
            CA:FALSE
        X509v3 Authority Key Identifier:
            B5:9B:69:D9:57:68:6A:E8:A7:06:98:48:A7:D6:31:E3:8B:60:8A:81
        Authority Information Access:
            CA Issuers - URI:http://crt.harica.gr/HARICA-CodeSigning-Sub-R2.cer
            OCSP - URI:http://ocsp.harica.gr
        X509v3 Certificate Policies:
            Policy: 2.23.140.1.4.1
            Policy: 0.4.0.2042.1.2
            Policy: 1.3.6.1.4.1.26513.1.1.3.2.2
              CPS: https://repo.harica.gr/documents/CPS
        X509v3 Extended Key Usage:
            Code Signing
        X509v3 CRL Distribution Points:
            Full Name:
              URI:http://crl.harica.gr/HARICA-CodeSigning-Sub-R2.crl

        X509v3 Subject Key Identifier:
            2E:1E:E3:66:67:FD:31:E6:E7:C9:0E:09:02:70:7E:13:75:74:8A:FA
        X509v3 Key Usage: critical
            Digital Signature
Signature Algorithm: sha256WithRSAEncryption
Signature Value:
    8e:01:42:81:2c:ad:08:d6:15:eb:73:91:37:78:e2:b5:df:d2:
    9e:c3:86:a2:48:fe:6a:9b:b0:7d:8e:e2:1f:54:5d:99:ae:aa:
    98:21:43:33:9b:ec:f1:db:6c:45:39:7b:f9:7c:41:75:05:64:
    22:9f:30:ca:2f:7a:c8:4d:c3:21:38:de:25:ad:9e:15:b7:3c:
    12:00:6b:3c:f6:6d:fb:9d:b9:b8:cb:62:f8:a7:34:81:50:7f:
    72:e2:1f:f2:33:0b:d2:a3:2a:cf:ac:5b:5e:d3:54:93:0e:fd:
    b6:cf:29:a8:9d:a5:56:fa:8f:8a:da:77:59:ce:63:a0:f2:9a:
    1d:9b:5c:7c:86:47:46:08:78:81:d4:4a:bd:43:fe:40:6a:ca:
    d7:35:55:a0:ac:6b:68:01:af:54:84:81:6a:6b:c5:54:d2:7c:
    89:65:76:69:8a:89:f6:65:35:71:21:94:5a:4e:43:4b:ad:06:
    5b:2e:d4:ea:d0:65:d2:7c:7c:45:a3:88:cd:62:15:95:d7:96:
    54:5a:54:b1:3a:07:63:d8:9e:f2:8a:00:ba:92:0a:7c:92:72:
    0d:e8:bd:8a:58:36:09:e0:ab:ce:20:d3:57:68:a1:48:7e:21:
    32:d9:83:14:7d:5a:33:12:d2:13:ef:fd:1c:37:3f:93:21:4f:
    d9:34:3c:d7:dc:76:06:3c:69:90:f6:e2:99:fb:8a:cb:7c:81:
    e4:0a:88:35:3d:58:9c:eb:52:02:cd:07:0b:04:ae:b6:79:d2:
    87:10:2d:10:4b:2e:a4:a5:42:6b:7f:16:92:09:54:29:e1:e0:
    3f:95:d3:a0:c6:71:41:97:e1:ce:d5:b6:8f:58:73:7d:2f:6a:
    45:39:fc:88:da:60:00:0c:c1:23:0f:f4:94:db:55:71:a0:42:
    36:ae:30:8b:ea:e1:c1:48:dd:1b:c5:0b:e5:f6:80:6b:58:0d:
    b4:db:bd:02:bd:b6:18:33:f6:26:6e:fb:4f:0f:1b:a4:8e:6a:
    6e:b4:ab:59:b6:36:76:06:79:96:80:22:6d:28:fa:8d:4e:fa:
    e1:33:76:59:1e:1e:a5:c3:2a:3e:a9:81:cb:67:52:ab:81:c3:
    20:41:12:ce:2e:70:1b:54:6b:87:92:f0:89:94:83:ea:da:06:
    bb:5e:ef:75:aa:2b:7b:7a:70:7d:8c:67:37:d4:07:1c:2b:66:
    2c:ce:ef:5d:4d:11:96:a7:3a:99:40:73:bb:13:84:5f:e0:6a:
    42:f5:da:aa:5e:e2:e5:09:41:22:03:59:ec:c3:18:e7:bf:72:
    ca:d2:fb:44:d3:2c:52:2d:e7:89:e0:57:07:f2:80:b3:03:82:
    b1:ea:11:ff:0f:ac:e4:1c

Signing Code

To sign code you need a program that can compute the right hash, generate a signature, and attach them to the program.

On Windows there's signtool.exe or Set-AuthenticodeSignature, which supports all the common Windows program formats like .EXE, .DLL, .MSI, and .PS1.

However, I want to sign Windows programs on my Linux desktop, since Linux is what familiar with and that's also where I'm plugging the hardware token into..

There's this great project called osslsigncode which runs on various operating systems and let's you sign Windows programs. This is what I've used to sign all programs so far.

osslsigncode isn't available in my OS' package manager, but it's a very easy project to compile yourself.

# Clone the repository
$ git clone https://github.com/mtrojnar/osslsigncode.git

# Configure the build
$ cd osslsigncode
$ CC=clang CXX=clang++ cmake -S . -B build -G Ninja \
    -DCMAKE_BUILD_TYPE=Debug \
    -DCMAKE_C_FLAGS="-fsanitize=undefined -fsanitize-minimal-runtime -fno-omit-frame-pointer -fno-sanitize-merge -fno-sanitize-recover=all"

# Build, test, and install the program
$ cmake --build build

    .. Build output ..

$ cd build
$ ctest

    .. Tests should all succeed ..

$ sudo cmake --install .

    .. Installs into /usr/local/bin ..

PKCS #11

You can use osslsigncode to easily sign programs using a self-signed certificate, but what if you want to create signatures with the proper, publicly trusted certificate where the private key is stuck on a hardware token?

This involves using a PKCS #11 module which knows how to pass cryptographic operations to the token. osslsigncode can use these modules for its signing operations; so that's great, but where do I get a module that's compatible with my token?

The software HARICA provided includes a module that should work, but:

• It's not compiled/supported for my flavour of Linux.
  • It would probably work if I copy it out of the Ubuntu VM, but this feels fragile so I really don't like the idea of relying on this.
• I prefer to use my operating system's package manager or compile something myself.

Thankfully, OpenSC — an open source smart card interfacing project — includes a PKCS #11 module that works with many hardware tokens including the one I have.

Discovering the objects on the token

Objects on the token can be located via a PKCS #11 URI, which gives you a standard way to tell programs what objects to use for their operations.

To list objects on the token, you can use pkcs11-tool or p11tool. In my case, p11tool generated URIs that worked better, since it properly percent encoded special characters like ö.

The following command lists all URIs of the tokens on my machine:

$ p11tool --provider /usr/lib/opensc-pkcs11.so --list-tokens

Now, knowing the token URI, I was able to list its objects:

$ p11tool --login --provider /usr/lib/opensc-pkcs11.so --list-all '[token uri here]'

It lists a lot of stuff. I had to use the first certificate and private key on the list.

Signing

These are the commands I used to create self-signed and then properly signed programs.

$ osslsigncode sign \
    -certs self.cert \
    -key self.key \
    -ts http://ts.harica.gr \
    -n "Noita Process Dumper" -i "https://github.com/dextercd/Noita-Minidump" \
    -in noita_dumper.exe -out noita_dumper-self-signed.exe

$ osslsigncode sign \
    -login \
    -provider /usr/lib/ossl-modules/pkcs11prov.so \
    -pkcs11module /usr/lib/opensc-pkcs11.so \
    -pkcs11cert 'pkcs11:model=PKCS%2315%20emulated;manufacturer=Gemalto;serial=6580029647482a7a;token=Dexter%20Castor%20D%C3%B6pping;id=%00%01;object=Certificate%201;type=cert' \
    -key 'pkcs11:model=PKCS%2315%20emulated;manufacturer=Gemalto;serial=6580029647482a7a;token=Dexter%20Castor%20D%C3%B6pping;id=%00%01;object=Private%20key%201;type=private' \
    -ts http://ts.harica.gr \
    -n "Noita Process Dumper" -i "https://github.com/dextercd/Noita-Minidump" \
    -in noita_dumper.exe -out noita_dumper-signed.exe

The timestamping server passed in with the -ts argument is important, as it keeps the signature valid beyond the lifetime of the code signing certificate. osslsigncode uses the TS server to attach proof that the signature was created before the certificate expired.

Using the Hardware Token in GitHub Actions

As mentioned before, a code signing service would be handy for signing code in CI environments; I create releases using GitHub Actions and would like to sign those. How can I do that when the hardware token is plugged into my PC but the builds are performed by GitHub on the other side of the world?

Well, one option would be to host a GitHub Actions runner myself. That's a fine solution, but, for me, it kind of defeats the point of GitHub Actions. I want to build my code on a standard environment without needing to do a bunch of setup and maintenance work.

An alternative would be to create my own code signing service. I could have a basic HTTP server which accepts the file, invokes osslsigncode, and returns the signed program to the GitHub Actions job.

A minimal solution would only be around twenty lines of code, but, with good reasons, you probably want make things more complicated; you may want any or all of the following features:

• Proper authentication and authorisation
• Logging
• Test signing
• Antivirus scanning
• VirusTotal analysis
• Integration with build systems like CMake

So that's what I did, but this blog post is too long already; I'll write more about the code signing server project later :).
